SKU: PS 4G15

PS 4G15

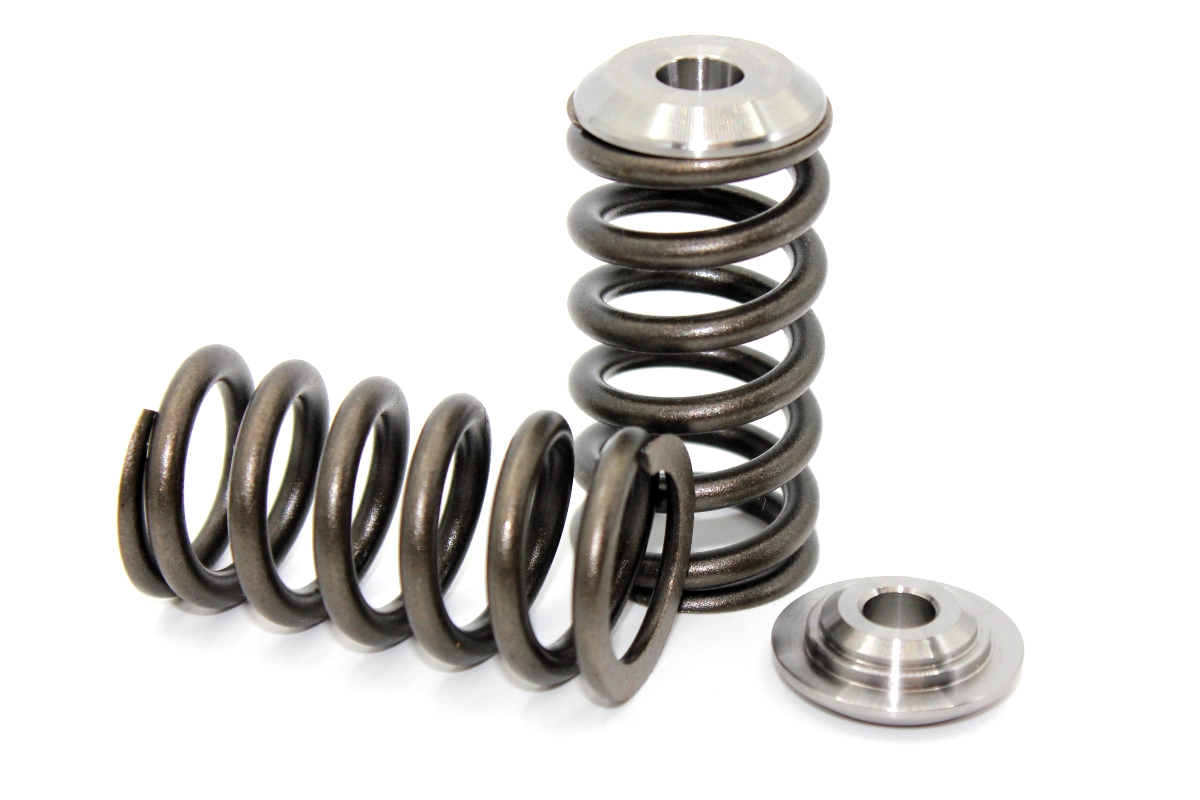

PVS Mitsubishi 4G15 12V Spring Set

These install at 70 lbs and 200 lbs at 0.440 (11.1mm) lift.

Spring Specs:

  • Intake OD: 1.075 (27.3mm)   ID: 0.750 (19mm)
  • Exhaust OD: 1.225 (31.1mm)   ID: 0.880 (22.3mm)
  • Installed Height: 1.57”
  • Seat Pressure: 70 lbs
  • Pressure at 0.440” (11.1mm) lift 200 lbs

Price Includes:

  • 8 x Intake PVS Single Valve Springs
  • 4 x Exhaust PVS Single Valve Springs
OD = mm
ID = mm
Pressure @ = Lbs
Pressure @ = Lbs
Coil Bind = mm
Free Height = mm

$176.40

Disclaimer: All information and specifications in this website are a culmination of 30 years of experience. All care has been given in collating and reproducing this information, but no responsibility will be taken for any errors or misinformation.

If you are concerned about any specifications, please get in touch prior to ordering.

It is the sole responsibility of the person using and/or installing these parts to check and recheck all dimensions, pressures, applications and specifications before, during and after installation.

All valve springs have a min and max tolerance of around 8% on pressure specifications.
